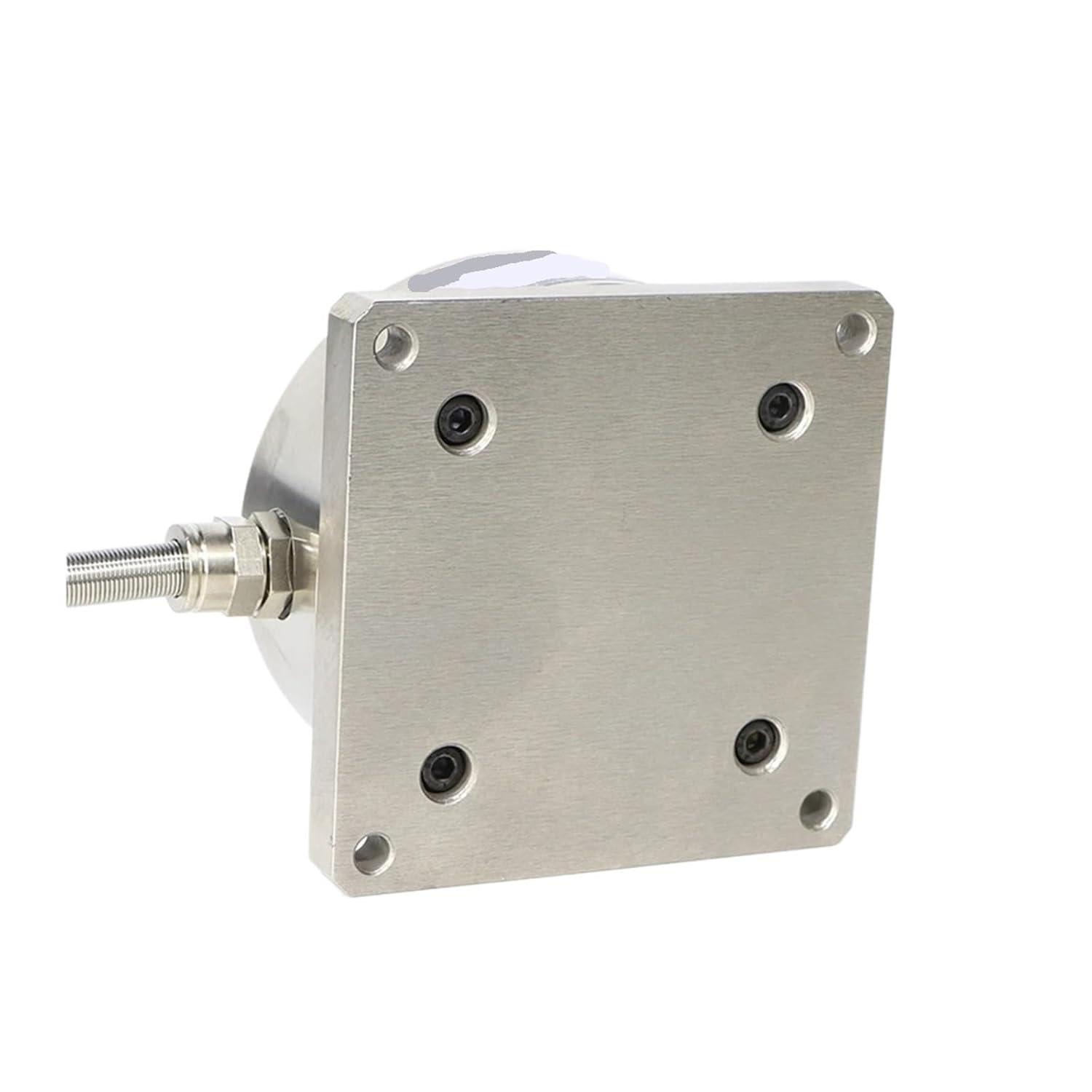

Spoke Load Cell Wheel Force Snesor Weighing Transducer for Large Capacity Scale Automatic Test Device 100KG-50T,for Impact Force Measurement Industrial Testing(0-2T)
Product details
| Management number | 221500831 | Release Date | 2026/05/03 | List Price | $61.18 | Model Number | 221500831 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Name:Spoke Load Cell Wheel Force Snesor Weighing Transducer For Large Capacity Scale Automatic Test Device 100KG-50TModel: DYLF-101Series: Wheel spoke pressure pointsSensor type: Strain gauge sensorWork force: optional rangeAccuracy: 0.05% F.SOutput type: current signalInstallation type: screw fixationPower supply voltage: 15 (V)Application field: 3C digitalSpecifications: 0-100KG, 0-200KG, 0-300KG, 0-500KG, 0-1T, 0-2T, 0-3T, 0-5T, 0-10T, 0-20T, 0-30T, 0-50TMaterial physical properties: conductorMaterial Crystal Structure: PolycrystallineDelay: 0.1performance parametersRange: 0-50TOutput sensitivity: 2.0 ± 0.5mV/VZero point output: ± 1% F.SNonlinear: 0.05% F.SLag: 0.05% F.SRepeatability: 0.03% F.SCreep (30 minutes): 0.03% F.STemperature sensitivity drift: 0.03% F.S./10 ℃Zero temperature drift: 0.03% F.S./10 ℃Response frequency: 10KHzMaterial: Alloy steelImpedance: 700/1400 ΩInsulation resistance: ≥ 5000M ΩOperating voltage: 5-15VWorking temperature range: -20~80 ℃Safe overload: 150%Extreme overload: 200%Cable specification: φ 5x3m/5mUltimate tensile strength of cable: 10kg
- High Precision Load Cell: The Spoke Load Cell Wheel Force Sensor delivers exceptional accuracy with a performance parameter of 0.05% F.S, making it an choice for large capacity scales and automatic test devices ranging from 100KG to 50T
- Versatile Application: Designed for various applications, this Load Cell is for the 3C digital field, ensuring reliable measurements across multiple weight specifications including 0-100KG, 0-200KG, and up to 0-50T
- Robust Construction: Made from alloy steel, this Load Cell offers outstanding durability and can withstand extreme overload conditions up to 200%, providing a safe and dependable weighing solution
- Easy Installation: Featuring a screw fixation installation type, the Spoke Load Cell allows for quick and hassle-free setup, ensuring that it integrates seamlessly into your existing systems without extensive modifications
- Wide Operating Range: With an operating voltage of 5-15V and a working temperature range of -20℃ to 80℃, this Load Cell is built to perform reliably under various environmental conditions, making it suitable for diverse testing scenarios
| Item Weight | 2.65 pounds |
|---|---|
| Manufacturer | COMOAEW |
| Item model number | 0000 |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
